phaethon dualwith DUALFLEX

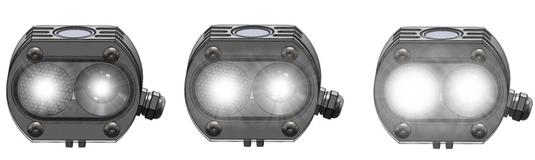

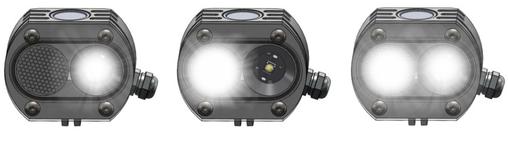

This driver offers the ability to operate the two LEDs either simultaneously or independently, at each mode, at the desired level of brightness. That offers the option of many different mode combinations. The user can decide whether he wants 3, 4 or 5 modes plus the 2 standard 'supermodes'.  However if the user wants, he or she can customize it according to individual needs.

PhaethonwithLFLEX

This driver is set up with 5 modes plus 6 strobe modes that operate the LEDs simultaneously. The user receives a lamp, ready to use, with no need for further programming, although limited customization is possible.


Both drivers are already set up by us for optimal performance.

MODE
WIDE LED
SPOT LED
LUMENS
RUNTIME
1
L1    40mAh
L1    40mah
50
4800 min
2
L2  260mAh
L2  260mAh
300
  740 min
3
L3  500mAh
OFF
300
  740 min
4
L3  500mAh
L3  500mAh
600
  385 min
5
L5 3000mAh
OFF
1000
  160 min
+ 1
OFF
L5 3000mAh
1000
  160 min
+ 2
L5 3000mAh
L5 3000mAh
2000

    25 min

MODE
WIDE LED
SPOT LED
LUMENS
RUNTIME
1
L1    40mAh
L1  40mAh
50
4800 min
2
L2  260mAh
L2  260mAh
300
  740  min
3
L3   500mAh
L3  500mAh
600
  385  min
4
L4  1300mAh
L4 1300mAh
1200
  165  min
5
L5  3000mAh
L5 3000mAh
2000
    30   min

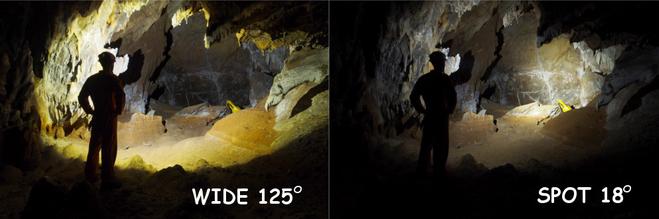

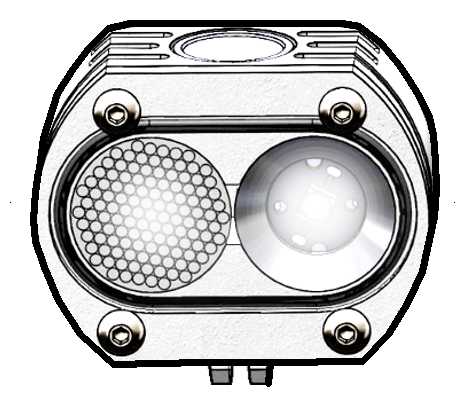

    The Phaethon caving lamps use two LEDs, as most modern caving light systems do, one operating as a flood to fill almost the entire viewing field (wide) and the other producing a narrow stronger beam (spot) for long distances. The wide angle led floods light at 125 degrees. The spot uses an 18 degree optic ,for Phaethon, which we consider the most suitable and 4 degree for Phaethon Dual.

   The Phaethon may be shipped with a 4, 13, 25 or 28 degree spot optic, if requested.


    About a year ago, we decided to adopt the GoPro mounting systems on our caving lamps. This offers the advantages of having a big variety of mounts for many different activities at a very reasonable cost. Great quality and huge availability are also ensured. We are now happy to see that other caving lamp manufacturers are using GoPro mounts for their caving lamps, something that will ensure full compatibility between them in the future, in the same way that many action cameras are using the same mount.

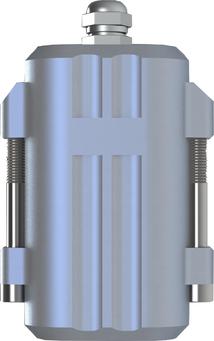

  For mounting the battery case we have chosen to keep it simple by using mini-bungee cords, instead of bolts. This option offers us certain advantages:

  • Absorption of knocks making it less likely for something to break.
  • Fast and easy mounting and unmounting.
  • The two bungees could accommodate other things if needed, like a survivor blanket for instance.


warranty - services


 We  provide free repair and limited lifetime warranty service for our products. We guarantee that the Phaethon lamp you have purchased has been constructed by hand to the highest standard and individually tested as to its waterproofing. If there should be any defect in the materials or manufacturing of your lamp, we will replace or repair the faulty part and return the lamp in fully working order.

For more information please refer to the manual.

    Our vision for caving lights incorporates the use of 'free' 18650 battery cells. All existing high end caving lamps use these same cells wrapped in plastic cases. However, if in the future everybody adopts the philosophy of free battery cells, then  cavers would have many benefits:

 Run time



​   To save bulk and weight, we run the Phaethon with two rather than four batteries.

    The two batteries ensure pretty good run times, so we feel justified by this decision.

​   It is better to have a lighter lamp on the helmet and carry spare batteries in a pocket.



How to order - prices


  To order a Phaethon caving lamp please send us an email at sales@phaethoncavinglight.com. Please inform us about which model (Phaethon or Phaethon Dual) you prefer, any additional accessories you might need or any further customization. Also, do not forget to mention the destination country to allow shipping to be calculated.

Payment may be made by PAYPAL or Bank Transfer (IBAN)

customIZATION

 the phaethon caving lamps are here


           We proudly present a new addition to the Phaethon range, the Phaethon Dual with a new driver and more capabilities to meet the needs of modern caving.

     The Phaethon Dual maintains the same quality and design externally, but contains a far more customizable driver than previous versions. The user can  operate the two LEDs both independently and simultaneously, at different, user selected levels of brightness. As with the original Phaethon, the user may select the LEDs that will be incorporated in order to meet his or her individual needs as a caver.

This exclusive lamp is handmade in Greece ​and is manufactured in limited quantities.

      The  LEDs that we use as a default choice are the CREE XM-L2 U2 3C with nominal light output of 1119-1193 lumens each at 3A at 25°C and with a color temperature of 4750-5000 K (Neutral White), CRI 75.
        Some cavers may prefer different types of LEDs that produce light at different kelvin temperatures (cold white, neutral white, warm white) and different lumen and CRI output.

We offer  a variety of Cree XML LEDs, that meet most needs.

features

MOUNTING OPTIONS


    Phaethon lamps have been designed for use for both caving and cave diving, but not as a main diving torch for technical dives.



    The main purpose of it is to be used as a primary light on dives in sumps as a lightweight option where the transportation of diving equipment is a big issue. It may also be used as a backup light on diving expeditions where a technical torch is used and a head lamp is also needed when the cave exploration continues after the sump. However, if someone wants to operate it handheld, we could provide a goodman mount that could be used.

Dimensions

Phaethon Dual's Specs

  • Two Cree XML-2 U2 3C  4750-5000 K CRI 75
  • 4 degree optic
  • Dualflex Taskled linear dimming driver
  • 5 + 2 brightness levels (modes)
  • Custom modes setup
  • Up to 2000 Lumens output
  • Schurter Piezoelectric switch
  • Overheating Protection
  • Voltage Notification
  • Electronic Lock to prevent accidental use
  • Anodized Aluminum Alloy 6082
  • CNC machined
  • Two Panasonic 18650 NCR-B 3400mAh Li-ion Batteries
  • GoPro Mount adapter
  • Diving Depth -250m
  • Individually tested at 10 bars
  • Polyurethane extra tough cable
  • High quality 4mm Plexiglass
  • Limited Lifetime Warranty

up to 2000 lumens


Two high efficiency XML-2 LEDs for outstanding output performance. Easily upgradable.

compact Robust design


Lightweight durable anodized 6082 Aluminium Alloy case. Small size to maximise durability and style.

Smart electronics


High efficiency circuit. Up to 7 custom modes. Voltage notifications, overheating protection, electronic lock.

specifications

weight

395 gr  (batteries included)

extra accessories



Helmet mount, with bungees           15  euros

Bike handlebar mount                       15  euros

  Car charger                                         10  euros

Goodman diving handle                     50 euros

Waterproof spare battery case         5   euros

Extra glass, two o-rings                       5   euros


(24% VAT included)

custom configuration


The user may choose the default configuration or any combination of LEDs, optics and output modes when ordering.
  • Cavers could share batteries no matter what kind of lamp they use, as it used to be with AA Alkaline batteries!
  • Common 18650 Li - ion chargers would be used
  • Batteries are easy to purchase from local stores worldwide.
  • Bulk and weight are saved from the battery case.
  • More economical layout.

Phaethon's Specs

  • Two Cree XML-2 U2 3C  4750-5000 K CRI 75
  • 18 degree optic
  • Lflex Taskled linear dimming driver
  • 5 brightness levels (modes)
  • 6 customizable strobe modes
  • Up to 2000 Lumens output
  • Schurter Piezoelectric switch
  • Overheating Protection
  • Voltage Notification
  • Electronic Lock to prevent accidental use
  • Anodized Aluminum Alloy 6082
  • CNC machined
  • Two Panasonic 18650 NCR-B 3400mAh Li-ion Batteries
  • GoPro Mount adapter
  • Diving Depth -250m
  • Individually tested at 10 bars
  • Polyurethane extra tough cable
  • High quality 4mm Plexiglass
  • Limited Lifetime Warranty

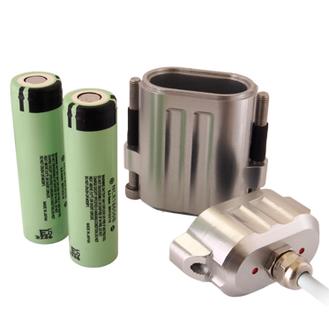

USER REPLACEABLE battery cells


The lamps run on two 18650 Li-ion cells of any brand. The user is free to use whatever brand he prefers and carry spares sourced locally.

 PHAETHON


          or Tomo M2 power bank and charger

  • GoPro elastic head band
  • Extra glass
  • Two extra o-rings


       PRICE   500  euros     (24% VAT included)                                       405  euros     excluding VAT

         Shipping cost : 15 euros

         plus transaction cost (Paypal or Bank Transfer)

Gopro mount


Phaethon lamps are compatible with GoPro mounts for ease of accessory sourcing. May be easily switched between helmet and head mount.

cave diving


Designed for cave diving and for use in extreme conditions. Depth rated to -250 meters. Individually tested to 7 bar.

piezo Switch


Piezoelectric Switch does not produce magnetic interference when surveying. No moving parts to be clogged by mud. Vandal proof.


Using the default LEDs (XML-2  U2 3C) set up at 3A max with Panasonic   3400mAh batteries.  Lumens are approximately calculated.



  • LEDs operate both together and independently
  • Up to 7 modes
  • User-defined Custom modes
  • Overheating protection
  • Voltage notifications
  • Electronic lock to prevent
    ​accidental operation



  • LEDs operate constantly together
  • Up to 5 modes
  • 6 strobe modes
  • Overheating protection
  • Voltage notifications
  • Electronic lock to prevent
    ​accidental operation

 PHAETHON DUAL


          or Tomo M2 power bank and charger

  • GoPro elastic head band
  • Extra glass
  • Two extra o-rings



      PRICE   520  euros     (24% VAT included)                                               420  euros     excluding VAT

        Shipping cost : 15 euros

        plus transaction cost (Paypal or Bank Transfer)

Phaethon


Download the Operation Manual for more information about Phaethon Model.


Download the Operation Manual for more information about Phaethon Dual.

Phaethon lamps use high quality drivers sourced from the American TASKLED . These offer great reliability and high efficiency of control and have been tested and developed over many years. They are the best possible solution we could have.

    On 13/07/2015 at Font Estramar in France, Xavier Meniscus accomplished a historical succesfull dive at -262 meters.        During his exploration he used Phaethon Dual.


                            Thank you Xavier.                                     We wish you all the best on your future dives.

Phaethon  dual


DIVING  WITH PHAETHON

About batteries


   UPGRADING THE LEDS

     Phaethon lamps are fully upgradable. The LEDs used can be removed and replaced with the more advanced LEDs that will come in the near future.

why 'FREE' batterY cells
